#500-hp-18s-m: Hydrostatic – Water Jacket Cylinder Test System
Utilities required to operate
- 8CFM @ 100psi of pre-regulated shop air
- Inlet water supply
- Consistent and stable air temperature
- Overhead I-beam with hoist and trolley
- 10′ Ceiling height
$16,200.00 | SKU: 500-HP-18S-M
Hydrostatic Water Jacket Cylinder Test System
Manually operated
Rated for testing in a range of 2000 – 10,000psi
Meets U.S. DOT requirements
Includes:
Air Operated Test Pump
- Stainless steel water section
- Soft seated check valves
- Contaminant free design (for testing of Oxygen cylinders)
- Accepts cylinders up to 16″ diameter x 34″ tall
- High and low pressure air bleed valves
- Manually operated lid closure
- 0-11,000 psi x 20 psi increments
- Class 3A – 1/4% full range accuracy
- 8.5″ dial face
Digital Scale for Expansion Readings
- Calibration Weights Included
- 700cc Net Capacity x 0.1g (cc)
- Valid for up to 90 days after purchase of equipment
- For up to 4 people
Set of 7 Test Adapters
Video and Written Instructional Manual
Calibration Certificates

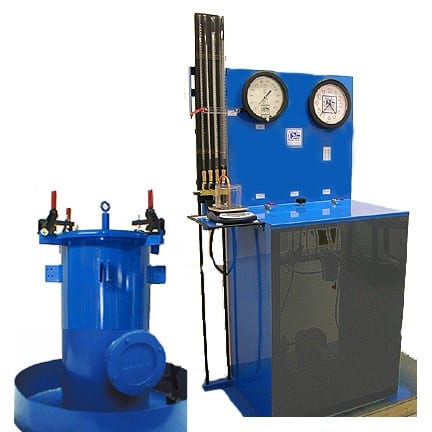

** Picture Shown With Optional 4 Burette Bank Board **
