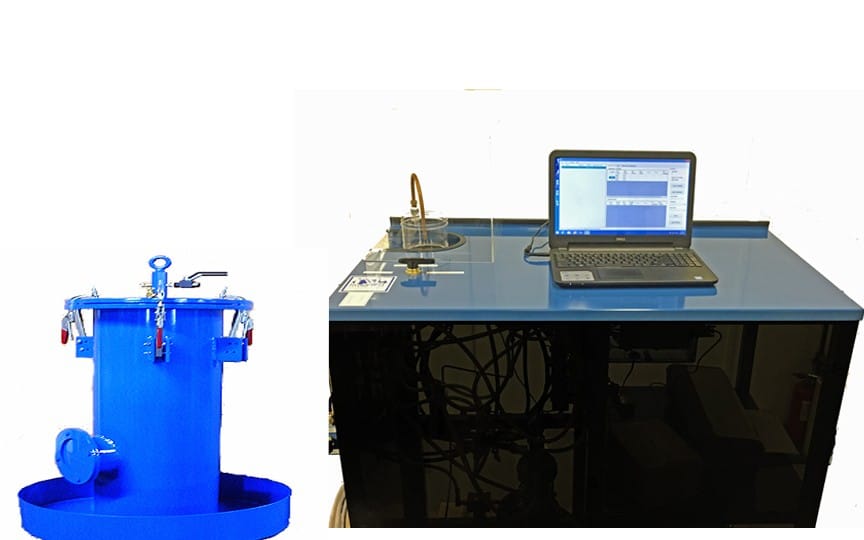

#507-hp-24s-m:software Driven Water Jacket Test System, With 24″d X 40″t Water Jacket

Automated Hydrostatic Water Jacket Cylinder Test System
Meets U.S. DOT requirements
Test range of 2000 – 10,000 psi in automated mode
Test range of 2000 – 10,000 psi in manual mode
Software operates test functions and records test results
Sleek – low profile modern cabinet design

Automated Features

• User friendly software program reduces human error
• Software calculates all expansion values and pass/fail criteria based on expansion values
• Pass fail criteria can be defined on % expansion or REE value ( for carbon fiber cylinders )
• Pressure hold time can be set up to 24 hours ( in seconds )
• Operator types in cylinder info and test criteria – clicks test button – test is then run and recorded
• Daily verification automated calibrated cylinder run
• DOT warning for improper verification procedure
• Detailed history screen allows date and field sort
• Records easily printable or exported as .csv files
• User defined templates are easily added and controlled
• Allows loading of cylinder information in batches or singularly
• System can be operated in manual mode for ease of troubleshooting
• System can be operated in manual mode for better accuracy when testing small high-pressure cylinders infrequently.

Includes:
Air operated test pump

• Stainless steel water section
• Soft seated check valves
• Contaminant free design – for O2 cylinder testing

Steel water jacket (test chamber)

• 24″ diameter x 40″ tall
• Accepts cylinders to 22″ diameter x 34″ tall
• Low pressure safety relief port
• High and low pressure air bleed valves
• Manual operated lid closure
• Floor mounted – no need for pit

Master pressure gauge

• Used for periodic re calibration of electronic sensors
• Class 3A – 1/4% accuracy
• 8.5″ diameter
• 11,000psi x 20psi increments

Calibration cylinder

• For full test range
• Test adapter and expansion chart included

Digital expansion readout scale

• 700g Net expansion value x 0.1g increments
• Calibration weights included

Hardware:

• IBM compatible Laptop
• Ink-jet printer

Set of 7 test adapters
Safety relief
Written instructional manual
Operational training seminar at Hydro-Test in Stow, Massachusetts

• For up to 4 people
• Valid for 90 days after purchase of test system

Calibration certificates

Click on this link for demo of software being used in standalone mode
